Waste fiber shredder

Short Description:

Single shaft plastic shredder machine is designed especially for shredding waste fiber, texitile waste etc.

The shredder has the advantages of stable running lower noise and big torque…

The materials are pushed into the shredding chamber by hydraulic. Independent drive system and solid structure make the running stably.


Product Detail

Product Tags

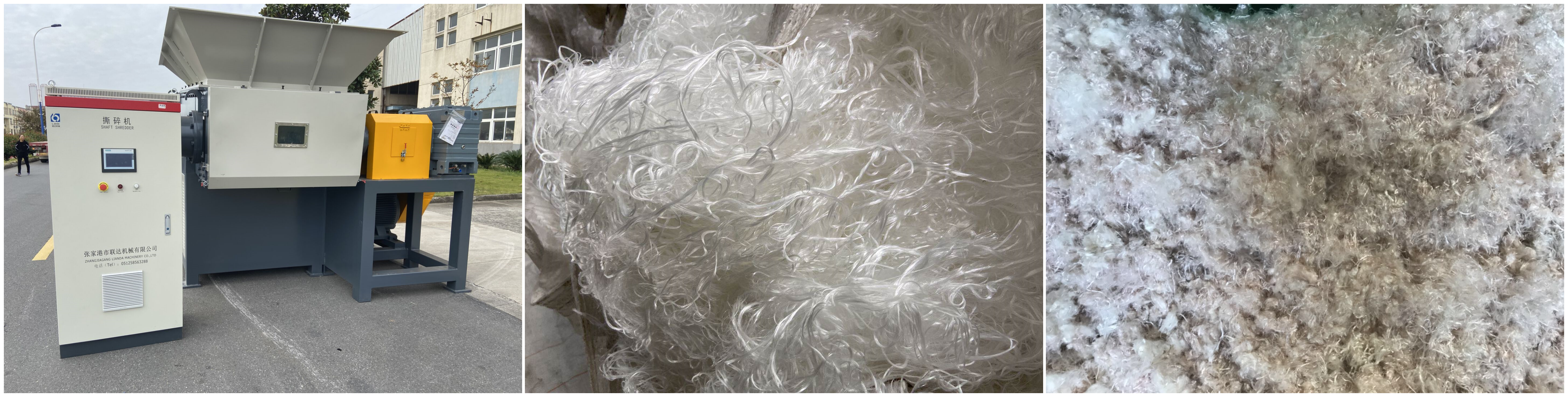

High Efficiency Single Shaft Shredder for Sale--- Fiber Shredder

WPS拼图0

GENERALDESCRIPTION >>

>>The LIANDA Waste fiber Single Shaft Shredder has a 435mm diameter profiled rotor made of solid steel, operating at a speed of 80rpm. The squared rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate,low power consumption and maximum output of shredded material.

>>The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.

>>Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance.

>>Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.

>>A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

Application For

Plastic: General purpose plastics such as injection molding, extrusion, blown film etc.; Timber: Wood pallet、Wood scraps etc.;

Paper: Document paper, wrapping paper, cardboard, etc;

Cable: Copper core, aluminum core cable and composite cable;

Aluminum: Zip-top can、Aluminum scrap etc;

Waste Fiber: Carpets,labor insurance clothes,Fiber etc;

Sponge: Industrial waste, etc;

Composite materials: Fiberglass products, automobile windshield, sealing tape, etc;

Safe destruction product: Imitation products (fake products), substandard products, expired items, etc.
