For any plastic producer or recycler, achieving consistent, high-quality output starts with a fundamental step: drying. But what happens when the material you need to dry isn’t uniform? Many processors face the challenge of handling blends or materials with different shapes and weights. A common, frustrating problem is material segregation, where heavier particles settle and lighter ones float, leading to uneven drying. One batch section might be perfectly dry while another remains too moist, causing problems in downstream processes like extrusion or granulation.

Since 1998, Zhangjiagang Lianda Machinery Co., Ltd. has been solving these challenges by focusing on simple, stable, and effective designs. Our solution to the segregation problem lies in the core mechanics of our Infrared Rotary Dryer. Let’s explore how continuous rotation makes the difference between a gamble and a guarantee in your drying process.

The Problem with “Static” Drying

In traditional drying methods that rely on a static bed or minimal agitation, a mix of materials—for example, heavy regrind mixed with lighter fluff—will naturally stratify. The heavier pieces sink to the bottom while the lighter materials stay on top. If the heat source is stationary, the materials on top receive the most exposure, while those at the bottom are shielded. This results in stratified layers of material with varying final moisture levels. This inconsistency can ruin product quality, create blockages, and make an entire production line unstable.

The Solution: A Drum in Permanent Motion

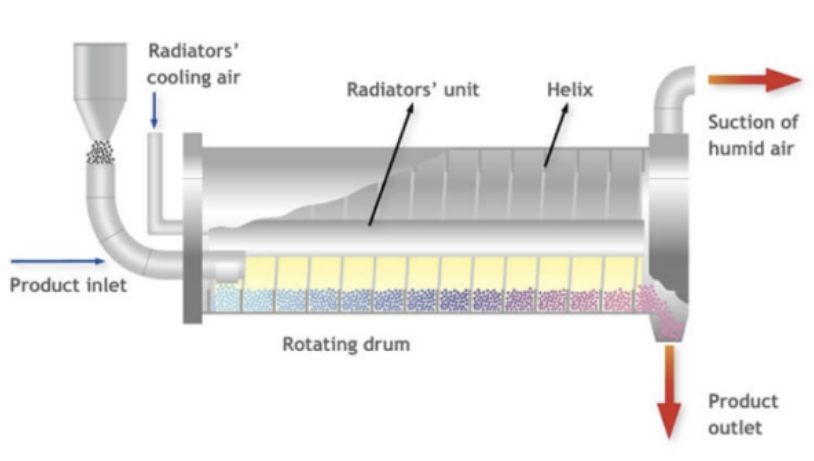

This is where the design of the Infrared Rotary Dryer changes the game. The key is in the name: rotary. The dryer’s drum is in constant, permanent rotation. This simple yet powerful action completely eliminates the possibility of materials settling into layers.

In a well-mixed mixture, every piece is distributed evenly. Our Infrared Rotary Dryer achieves the same result for your plastics.

1. Constant Tumbling Action: As the drum rotates, internal mixing elements gently lift and shower the material. Heavy granules and light flakes are constantly being repositioned. Every particle takes a turn at the top of the material bed and a turn closer to the bottom.
2. Equal Exposure for All: Because the materials are always moving, the infrared field inside the dryer does not just hit the surface layer. The tumbling action ensures that every single particle—regardless of its weight, size, or bulk density—is individually and uniformly exposed to the infrared energy.
3. No More Stratification: The risk of heavy materials settling into a “dead zone” of poor drying is eliminated. The continuous rotation guarantees a homogeneous mix throughout the drying cycle, so the entire batch is processed to the same final specification.

More Than Just Mixing: How Infrared Works with Motion

The rotation does not just mix; it optimizes the drying process. Our Infrared Rotary Dryer uses short-wave infrared light, which heats the material “from the inside out.” The infrared energy penetrates the particles and causes molecular excitation, turning energy into heat right at the core of the material.

The continuous rotation complements this perfectly:

▸ Enhanced Heat Penetration: As particles are tumbled, fresh surfaces are constantly exposed to the infrared emitters. This prevents any one spot from overheating and ensures the energy penetrates every particle efficiently.

▸ Efficient Moisture Release: The heat drives moisture from the inside of the particle to its surface. The tumbling action, combined with the dryer’s air circulation, quickly sweeps away this surface moisture, preventing it from creating a humid micro-environment around the particles.

▸ Achieving Low Moisture Quickly: This combination of internal heat generation and constant external agitation allows the Infrared Rotary Dryer to achieve remarkable results. For instance, moisture can be reduced from 40% to less than 5% in just 20-25 minutes.

Benefits You Can Measure

For a production manager or plant owner, this translates directly into bottom-line benefits:

▸ Consistent Quality: Every pellet, flake, or granule leaving the dryer has the same, predictable moisture content. This stabilizes the entire production line, from feeding to extrusion.

▸ Energy Efficiency: Because the drying is uniform and fast, there is no need to over-dry some parts to ensure the wetter parts are done. Lianda users report energy costs as low as 0.06kWh/kg, a significant saving.

▸ Operational Simplicity: The design is straightforward. With an instantly starting system (no warm-up phase needed) and easy cleaning, your team can focus on production, not machine maintenance. The PLC control system allows you to store recipes, ensuring optimal and repeatable results every time you run a specific material.

Conclusion

Do not let the natural tendency of materials to segregate dictate the quality of your output. Choose Zhangjiagang Lianda Machinery Co., Ltd.’s Infrared Rotary Dryer—an investment in a process that actively works against inconsistency. The continuous rotation ensures that your materials are not just dried, but are dried uniformly, efficiently, and reliably. It is a simple principle—keep it moving—that delivers maximum performance and the stable production your operation demands.
